Structured Cabling Dubai Cat6, Cat6A & Fiber Network Cabling
Structured cabling Dubai offices, villas and warehouses can rely on — Cat6, Cat6A and fiber cabling, patch panels, racks, labelling and testing installed by Zane Wave, so your network, Wi-Fi, CCTV, phones and POS all run on one organised cabling system.
Structured cabling Dubai businesses and homeowners need for offices, villas, warehouses and shops
Zane Wave designs and installs structured cabling across the UAE — from a single office to multi-floor buildings — including cable plan, copper and fiber runs, racks and patch panels, labelling, testing and handover.
What Is Structured Cabling?
Structured cabling is a standards-based network cabling system that links every outlet in a building to a central rack through patch panels, using organised and labelled cable runs. It follows a standard layout of six subsystems and uses copper such as Cat6 and Cat6A or fiber, so one cabling system can carry your network, Wi-Fi, phones, CCTV and POS. Good structured cabling Dubai buildings rely on is labelled, tested and easy to extend.
One Cabling System for Every Service
Structured cabling Dubai buildings use carries data, Wi-Fi, IP phones, CCTV, POS and attendance devices over one planned network instead of separate wires.
Labelled & Tested
Every run is labelled at both ends and tested before handover, so faults are found early and later changes are easy.
Room to Grow
We plan spare points and rack space, so adding a desk, camera or access point later does not mean re-doing the cabling. For long backbone runs, see our fiber network solutions.
What Our Structured Cabling Dubai Service Includes
Every structured cabling Dubai project is built from the same core parts, sized to your building and the number of network points.
Cabling & Components
The cables, outlets and racks behind your network
Cat6 Cabling
Copper cabling suited to Gigabit offices, shops and homes
Cat6A Cabling
Higher-grade copper for 10 Gigabit runs, longer distances and future growth
Fiber Backbone
Fiber links between floors, rooms or buildings. For splicing and FTTH, see our fiber network solutions

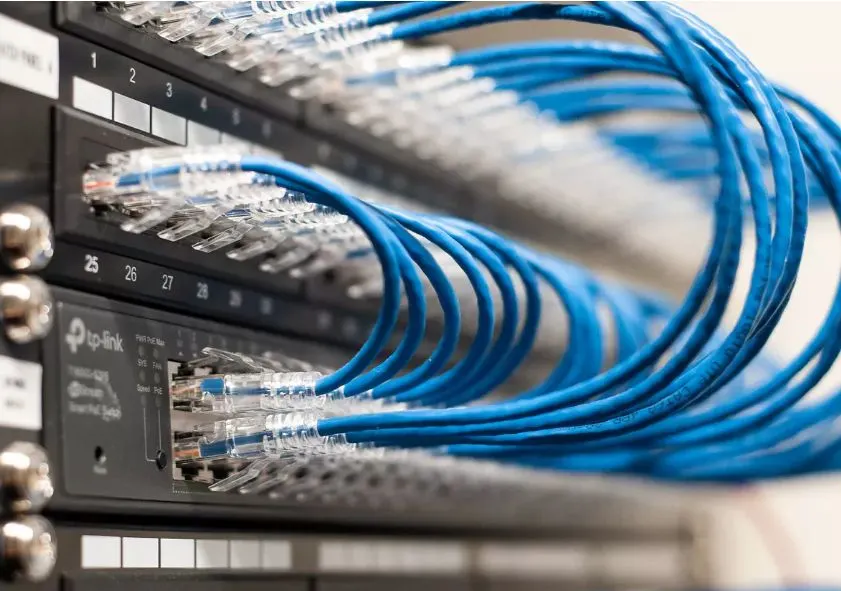

Patch Panels
Organised termination of every cable run at the rack
Racks & Cabinets
Floor-standing or wall-mount cabinets sized to your equipment
Outlets & Faceplates
Network outlets at each desk, wall or ceiling point
Trays & Trunking
Cable routes that keep runs tidy, protected and easy to follow

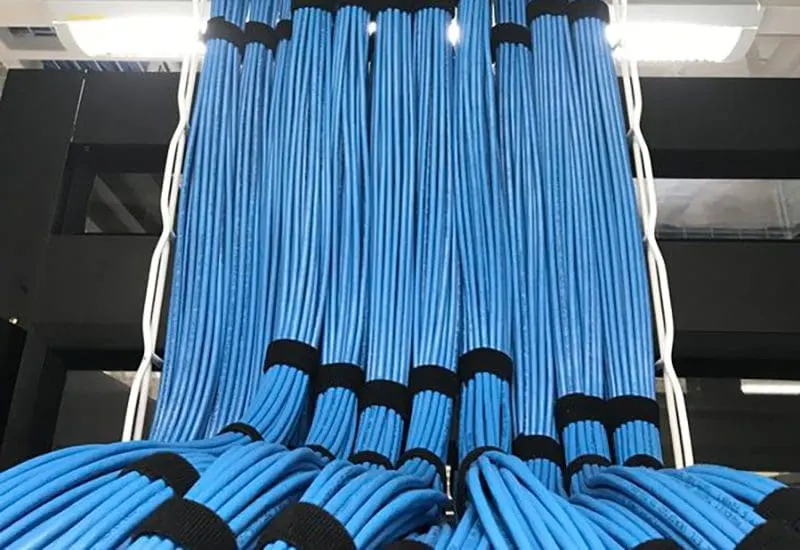

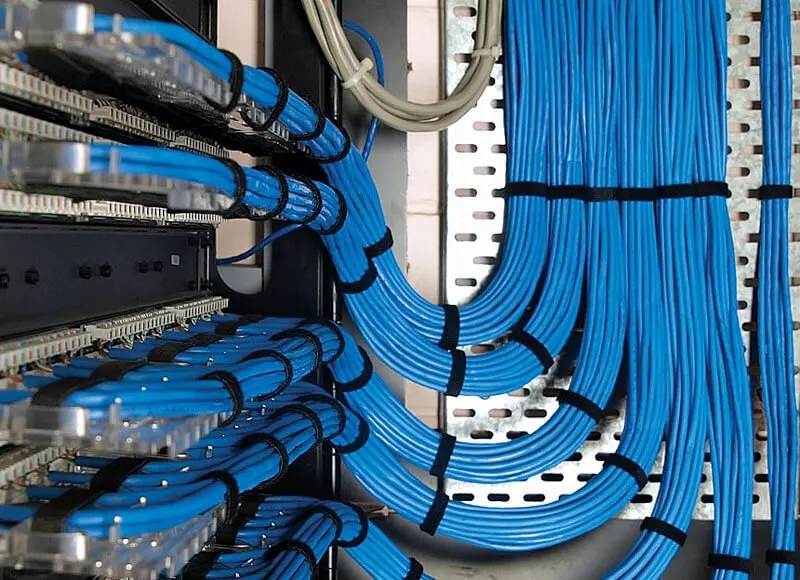

Cable Management
Neat rack dressing and patching so the rack is easy to maintain
Testing & Handover
What proves the work and keeps it maintainable

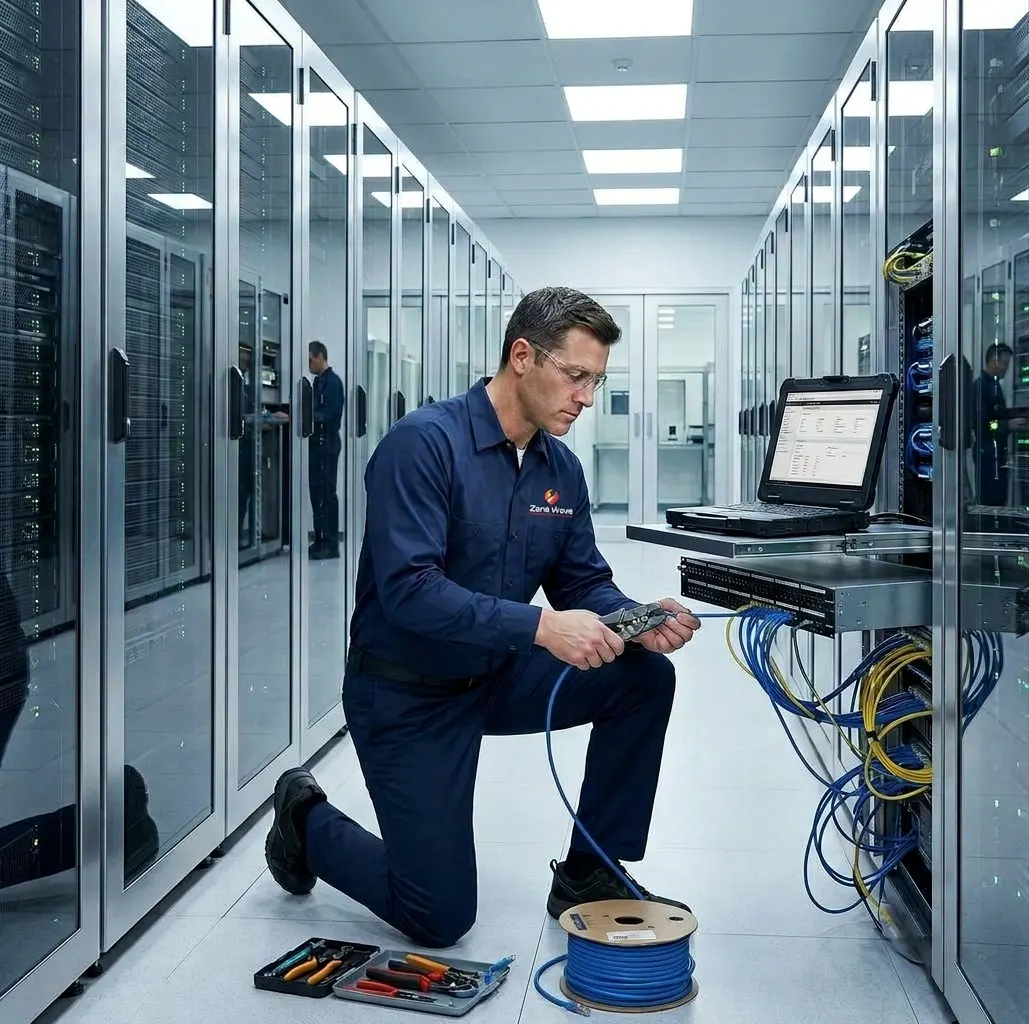

Cable Testing
Each run is tested before handover to check it connects and performs for its category
Labelling
Unique labels at both ends of every cable and on matching patch panel ports
Port Map
A list showing which outlet connects to which patch panel port
Test Results
Results of the cable testing documented for your records
Re-Patching & Re-Labelling
Tidy up and label existing racks when offices move or grow
Cabling Audit
Inspection of existing cabling to see what can stay and what needs replacing
Extra Network Points
Adding outlets later without disturbing the rest of the network
Support
Support and maintenance terms agreed during the site survey
The Six Parts of a Structured Cabling Dubai Project
Standard structured cabling is organised into six subsystems, which makes the network easy to understand and change.
Entrance Facilities
Where the building's incoming network lines, such as from the service provider, enter the cabling system.
Equipment Room
The room or cabinet holding main network equipment such as switches and routers.
Backbone Cabling
Links between floors, equipment rooms and buildings, often using fiber.
Horizontal Cabling
Cable from the rack on each floor to every outlet, up to 90 metres for the permanent link.
Telecom Rooms
Floor-level cabinets where horizontal and backbone cabling meet.
Work-Area Components
Outlets, patch cords and devices at desks, walls and ceilings.
Cat6 vs Cat6A vs Fiber for Structured Cabling Dubai Projects
The right cable for your structured cabling Dubai project depends on speed, distance and how long you want the network to last.
| Cable | Key facts | Best for |
|---|---|---|
| Cat6 | Up to 250 MHz; 10 Gigabit only up to about 55 m | Gigabit networks in offices, shops and homes |
| Cat6A | Up to 500 MHz; 10 Gigabit over the full 100 m | 10 Gigabit runs, long distances and future growth |
| Fiber | Carries data over light for long distances | Backbone between floors, rooms and buildings |
The 90 m + 10 m rule: In structured cabling, a copper horizontal run is limited to 90 metres for the permanent link, with up to 10 metres of patch cords for a 100 metre channel. Longer runs need a second rack or a fiber backbone. We confirm cable category and distances during the site survey.
Systems That Run on Your Structured Cabling Dubai Network
The best structured cabling Dubai customers install is planned for the systems that will use it, so nothing is added later in a rush.
CCTV & IP Cameras
Camera points planned with power and network in mind. See our villa CCTV installation and SIRA CCTV services.
IP Telephones
Desk phones connect on the same cabling. See our IP telephone system.
Wi-Fi Access Points
Access points need a wired connection back to the switch for stable coverage.
POS Terminals
Counters, printers and card terminals connected through network points. See our POS system installation.
Attendance Devices
Fingerprint and face terminals need network and power at the entrance. See our biometric attendance system.
Access Control
Door readers and controllers connected to the same network. See our access control system.
How We Handle Your Structured Cabling Dubai Project
A clear six-step process from site survey to handover.
Site Survey
We walk the building, check routes, rack locations, ceilings, risers and how many points each area needs.
Design & Cable Plan
We plan the cable category, outlet positions, rack layout and spare capacity.
Installation

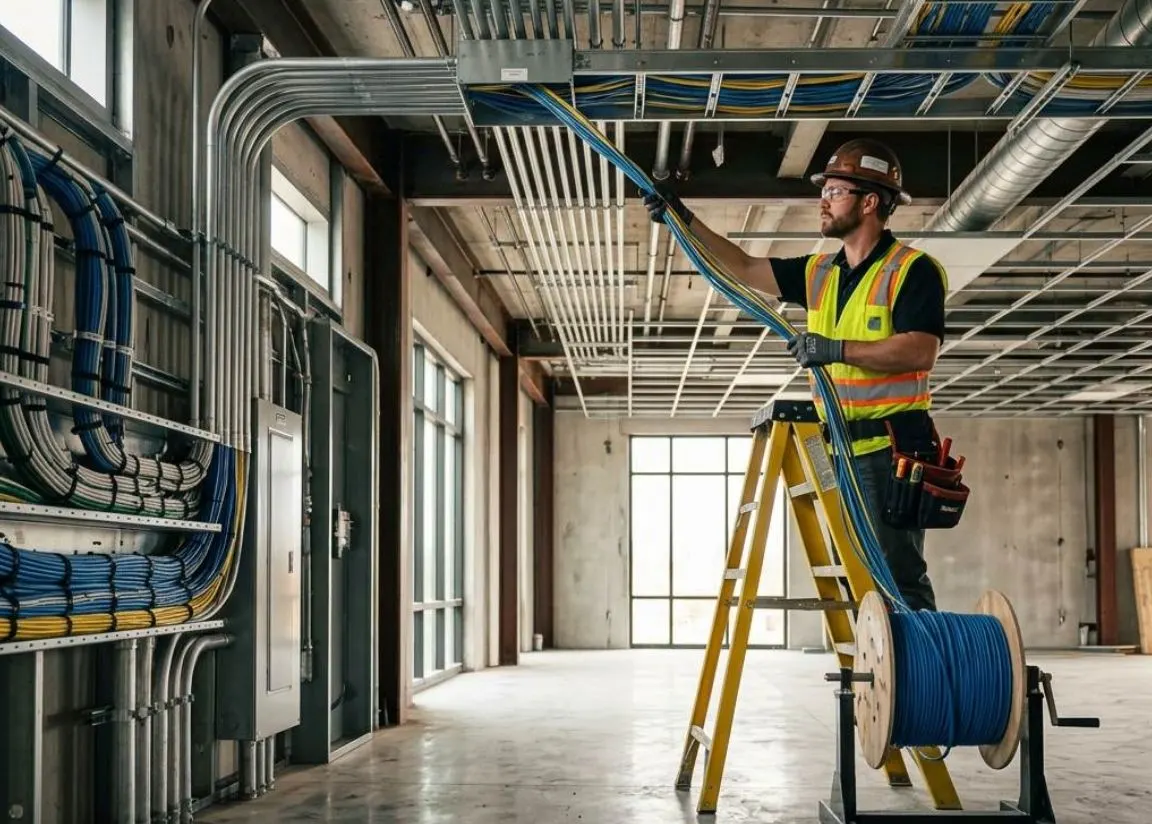

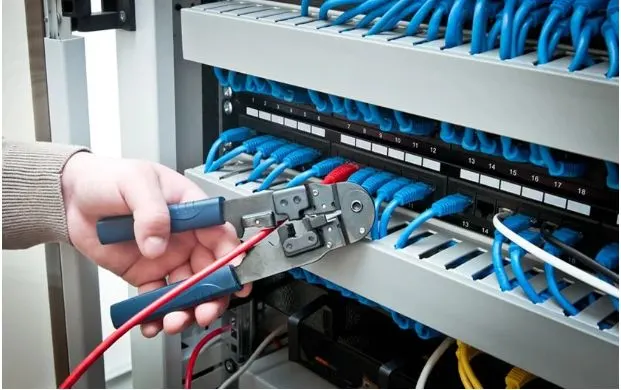

We pull cable along planned routes, fix outlets and terminate at the patch panel.
Labelling
We label both ends of every run and the matching patch panel ports.
Testing
We test each run and record the results.
Handover & Support
We hand over labels, port map and results, and agree support terms.
What You Receive From a Structured Cabling Dubai Installation
A structured cabling Dubai installation is only finished when you can read and maintain it.
Labelled Ports & Panels
Every outlet and patch panel port carries a matching label, so anyone can trace a connection.
Test Results
The results of testing each run, so you know the cabling meets its category.
Port Map
A simple list or diagram linking outlets to rack ports, ready for your IT team or next contractor.
Where We Install Structured Cabling in Dubai
From one office to a multi-floor building — every structured cabling Dubai project is sized to the property.
Why Choose Zane Wave for Your Structured Cabling Dubai Project
One UAE team for structured cabling Dubai projects, CCTV, access control, telephone and POS systems.
Cabling and Systems Together
The same team that installs your cabling installs the systems that use it
Right-Sized Plan
Cable category, racks and spare points are matched to your building, not a one-size package
Support After Installation
Re-labelling, re-patching and extra points handled when your property changes
Frequently Asked Questions
Planning Structured Cabling in Dubai?
Get in touch and we'll review your building, network points and systems to recommend the right structured cabling Dubai setup. Site survey available.
